Product Details:
|
| Frequency: | 20Khz | Power: | 3000w |
|---|---|---|---|
| Air Pressure: | 0.05-0.6MPA | Welding Range: | 4-50m㎡ |
| Highlight: | 20k Ultrasonic Spot Welder,Ultrasonic Spot Welding Machine 3000w,Tab Welding Ultrasonic Spot Welder |
||

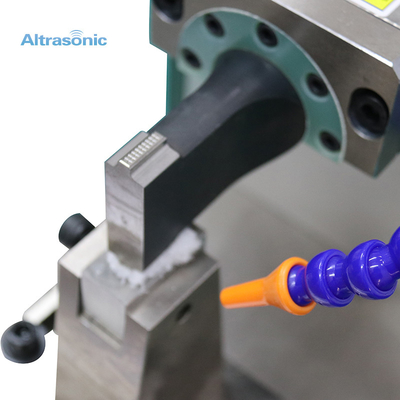

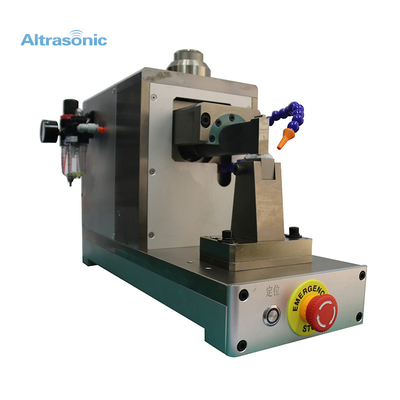

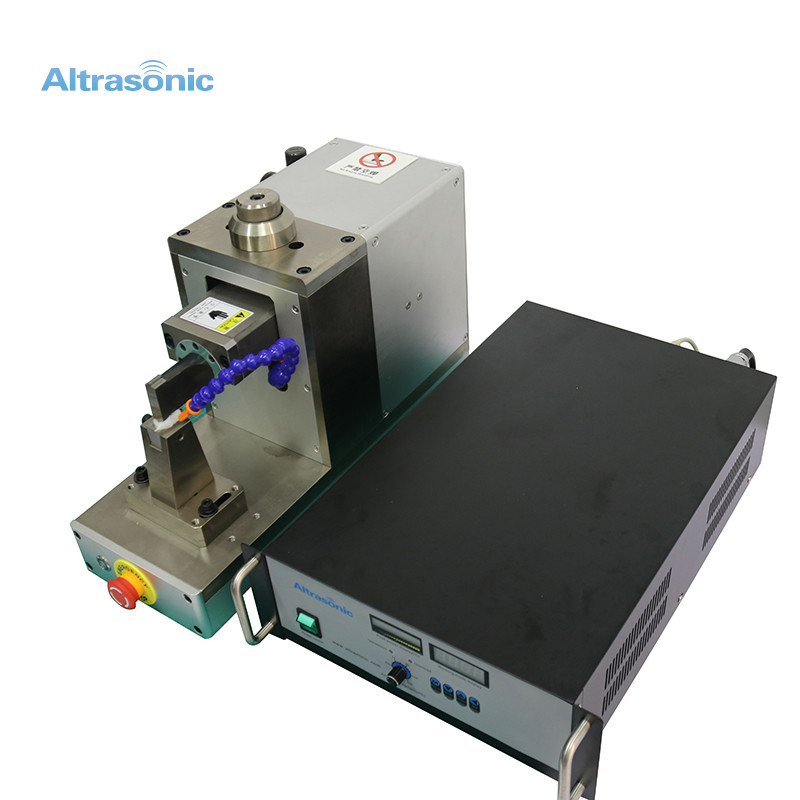

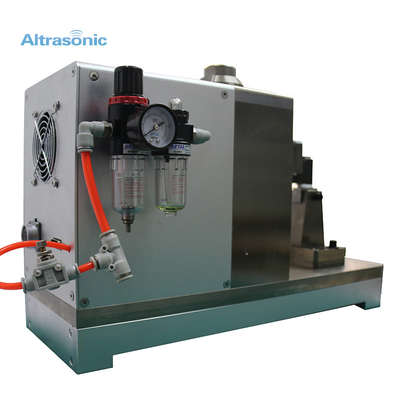

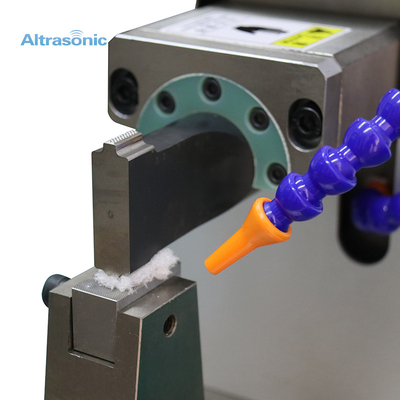

20kHz 3000w Ultrasonic Spot Welding Machine For Tab Welding
20kHz 3000w Ultrasonic Metal Welder Ultrasonic Spot Welding Machine For Tab Welding
Specification:
Air pressure: 0.05-0.6MPA
Working frequency: 20KHZ
Welding range: 4-50m㎡
Seg thickness: ≤3mm
Dimensions: 650*350*780
Rack quality: about 78KG
Power supply: 380V
Uses: copper wire, aluminum wire, copper-aluminum terminal
Motor power: customized
Advantages:
The wiring harness can be connected at the minimum cost; the electrical conductivity after soldering is good, the resistivity is low or almost zero; the soldering time is short, and no flux, gas, or solder is required. It is the current environmentally friendly soldering process and advanced electrical connection process.
Application :
1. Ultrasonic wire harness welding machine can weld 0.5mm²-50mm² wire harness forming. It is mainly used in automobile wiring harness connecting wire lap welding, electric wire head forming, wire mutual welding, multiple wires butt joint and mutual welding into wire knots.
2. Ultrasonic wire harness welding machine trial material copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire and wire harness and other copper wire, aluminum wire welding.
