Product Details:
|
| Frequency: | 20Khz | Power: | 2000w |
|---|---|---|---|
| Generator: | Digital Generator | Input Voltage: | 3800V/16A |
| Control: | CPU Control,automatic Scanning/tracking | Components: | Digital Generator, Transducer, Booster, Welding Horn |
| Highlight: | 2000w ultrasonic metal welding machine,20khz ultrasonic metal welding machine,20 khz ultrasonic metal welding machine |
||

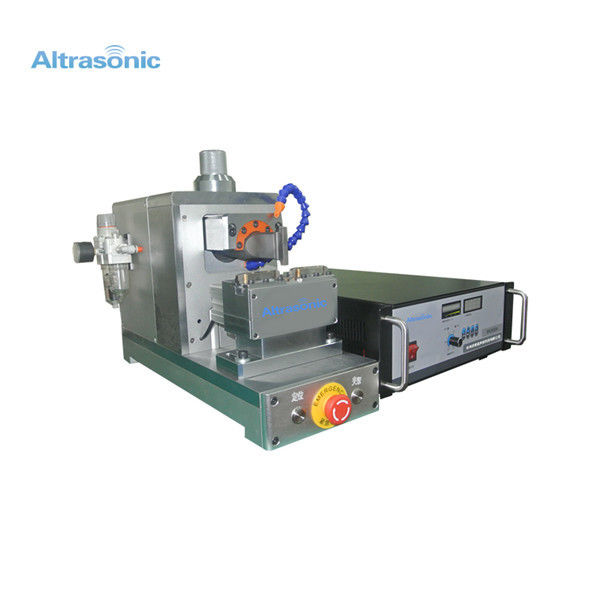

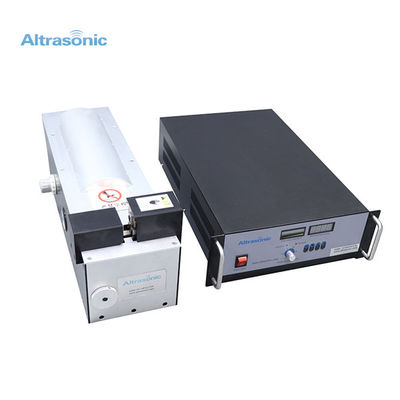

Digital Generator 20khz 2000w Ultrasonic Metal Welding Machine
Specification:
| Model | Operating Frequency | Operating Pressure | Suitable Wire size | Power | Operating mode | Dimension | Weight |
| HS-2032JX-AT | 20KHZ | 1kgf/cm2-6.0kgf/cm2 | 5-25mm2 | 380v/16A | Manual | 900*600*110 | 45kgs |
| HS-2020JX-AT | 35KHZ | 1kgf/cm2-6.0kgf/cm2 | 1-12mm2 | 220v/10A | Manual | 200*550*250 | 35kgs |
Description:
Ideal for welding nonferrous metals, Altrasonic ultrasonic metal welding systems meet the production demands of consumer brands and OEMs in the automotive, HVAC and electronics industries. The energy efficient-processes eliminate the need for added materials or contaminants such as flux agents, solder, solvents or crimp connectors, reducing materials costs.
Features:
1. Simple operation, easy maintenance;
2. High welding efficiency, fast speed;
3. Working frequency detection;
4. Long tool life, replace convenient and quick ;
5. Cost reduction, good electrical conductivity after welding, low or almost zero resistance coefficient.
6. Short welding time without any flux, gas and solder, which is green for environment.
Principle of Ultrasonic Metal Welding:

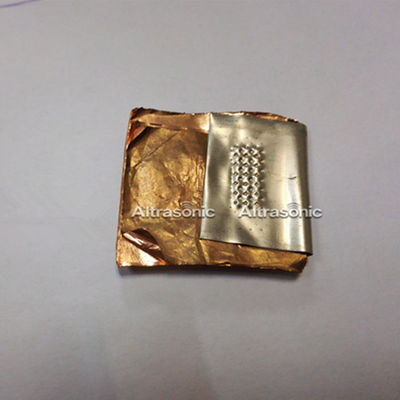

Ultrasonic metal welding uses high-frequency vibration waves to transmit to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers.
