Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| Highlight: | 60hz Ultrasonic Plastic Welding Machine,Single Phase Ultrasonic Plastic Welder,Automatic Ultrasonic Plastic Welding Machine |
||
15kHz automatic ultrasonic plastic welding machine for plastic parts
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|
Description:
The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time
Main Features:
1. Analog Ultrasonic Welding Machine, manually tuning, simple to use and maintenance.
2. Welding by time, delay time, weld time and hold time. Working pressure is adjustable.
4. Precise and high quality imported pneumatic parts
5. High quality transducer and booster.
6. Self-protection: Over-Current, Frequency Deviation, Over-Temperature
7. Available in 4 frequencies – 15 Khz, 20 Khz 35 KHz and 40 KHz.
8. Quick application changeover, high welding seam strength.
9. Suitable for high cadences and short cycle times.

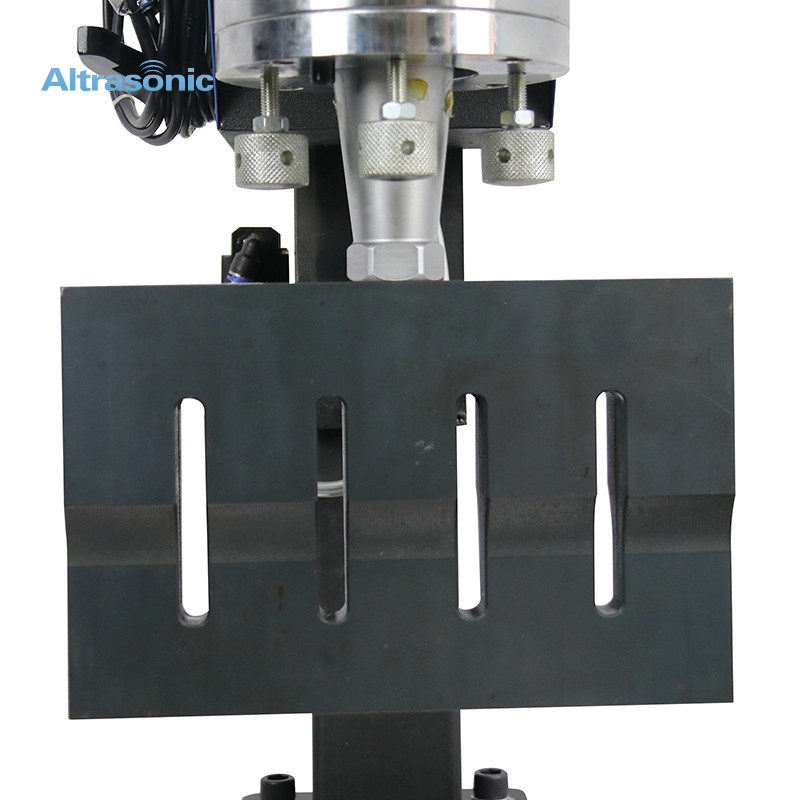

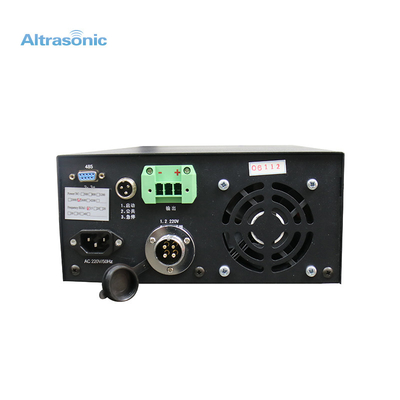

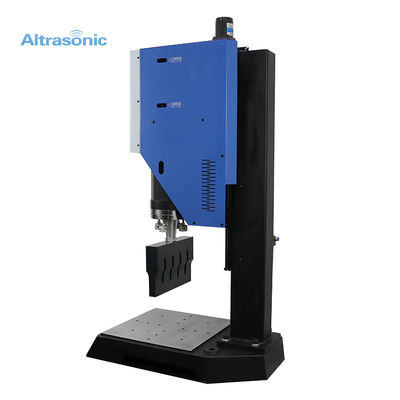

Detailed Images:
