Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| Highlight: | 4200w Ultrasonic Plastic Welding Machine,High Power Ultrasonic Plastic Welding Machine,Ultrasonic Plastic Welding Machine 15kHz |
||

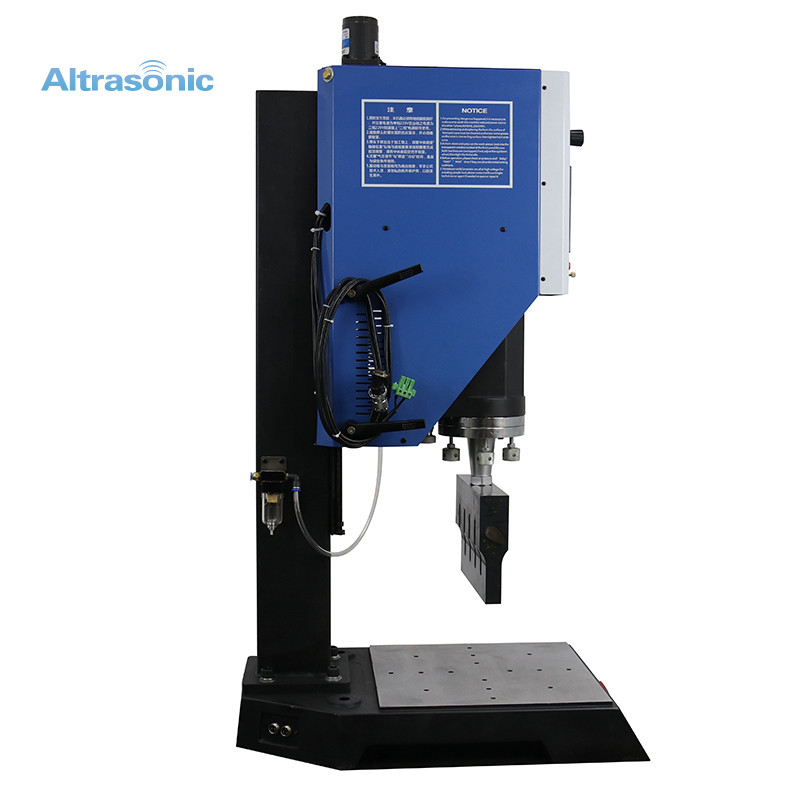

High Power Ultrasonic Plastic Welding Machine 15kHz 4200w
Description:
Ultrasonic welding is the most commonly used plastic welding technology and has a long-standing reputation in the plastics processing industry. Due to the fast welding speed, low energy consumption, and good weld quality consistency and reproducibility, this technology is the preferred welding technology for mass production applications in the packaging, automotive, medical, electrical, electronic, and household appliance industries.
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|
Detailed Images:
