Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| Highlight: | Abs Ultrasonic Plastic Welding Machine,Pvc Ultrasonic Plastic Welding Machine,15K Ultrasonic Plastic Welding Machine |
||
15K Pvc Ultrasonic Plastic Welding Machine For Abs Materials
Description:
Ultrasonic plastic welding machine is used for welding, riveting, forming, metal and plastic inlay of fusible plastic products. It is widely used in various industries such as electronics, electrical appliances, auto parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics and so on.
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|

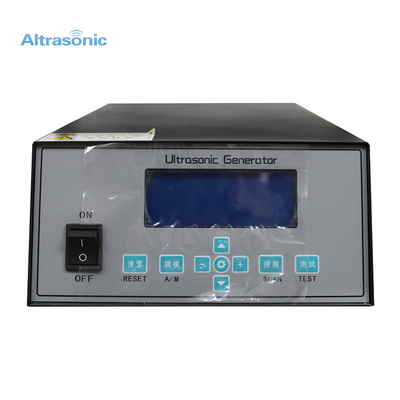

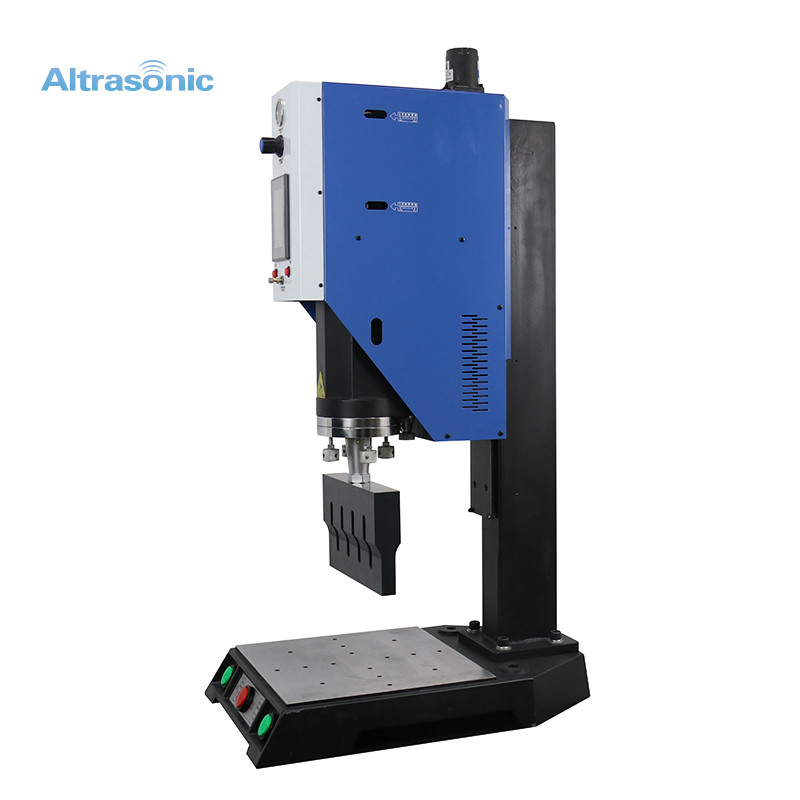

Detailed Images:
