Product Details:
|
| Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 500W | Weight: | 16Kg |
| Generator: | Digital Mode | Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying | Matetail Of Probe: | Titanium Alloy |
| Max Capacity: | More Than 500ml/Min | Intensity Of Sound: | More Than 10W/cm² |
| Origin: | China | ||
| Highlight: | 500W Power Ultrasonic Sonochemistry,Ultrasonic Homogenizer Digital Mode,Ultrasonic Homogenizer 500 Watt |
||
Ultrasonic Homogenizer Sonochemistry Titanium Alloy Probe 20kHz 500Watt
Description:
Ultrasonic homogenizer uses the cavitation and other physical effects of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that ultrasonic waves can form effective agitation and flow in the liquid to destroy the structure of the medium and pulverize the particles in the liquid.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max capacity | ＞ 500ml/Min | ＞ 2 L/Min | ＞ 5L/Min | ＞ 15L/Min | ＞ 20L/Min | ＞ 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasonic Homogenizer is the use of physical technology to produce a series of extreme extreme conditions in the medium of chemical reaction. This energy can not only stimulate or promote many chemical reactions, speed up chemical reactions, but also change the direction of chemical reactions and produce some effects.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.

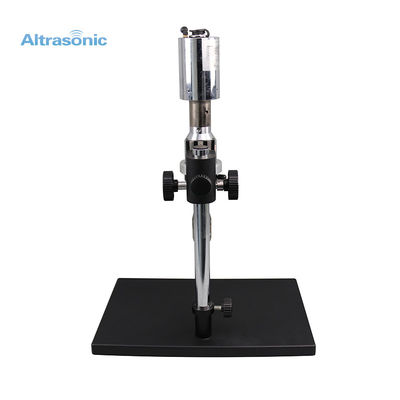

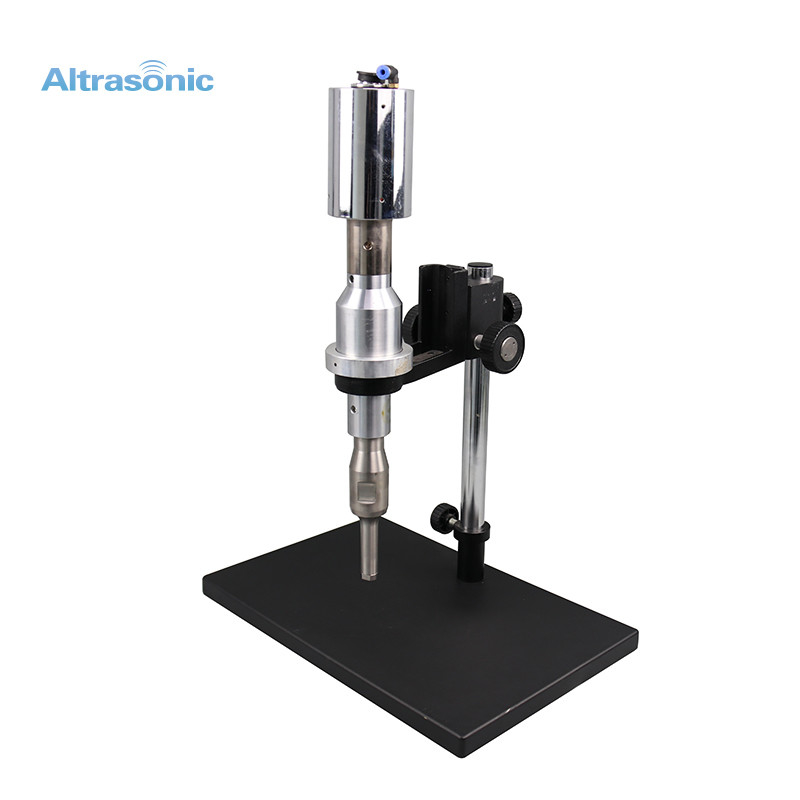

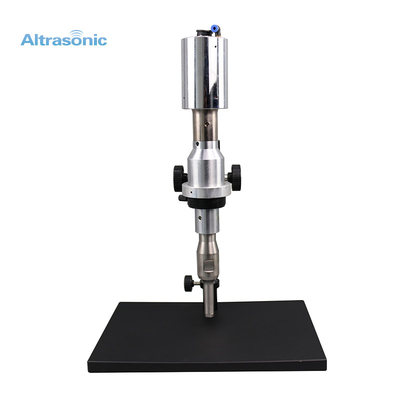

Pictures:
