Product Details:
|
| Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 500W | Weight: | 16Kg |
| Generator: | Digital Mode | Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying | Matetail Of Probe: | Titanium Alloy |
| Max Capacity: | More Than 500ml/Min | Intensity Of Sound: | More Than 10W/cm² |
| Origin: | China | ||
| Highlight: | 500 Watt Homogenizer Machine,Titanium Alloy Probe Homogenizer Machine,Digital Mode Homogenizer Machine |
||

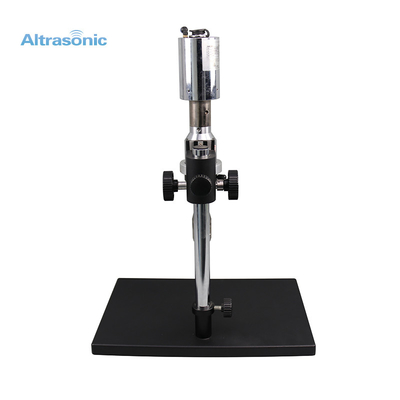

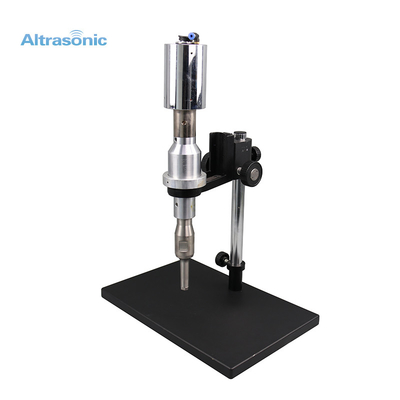

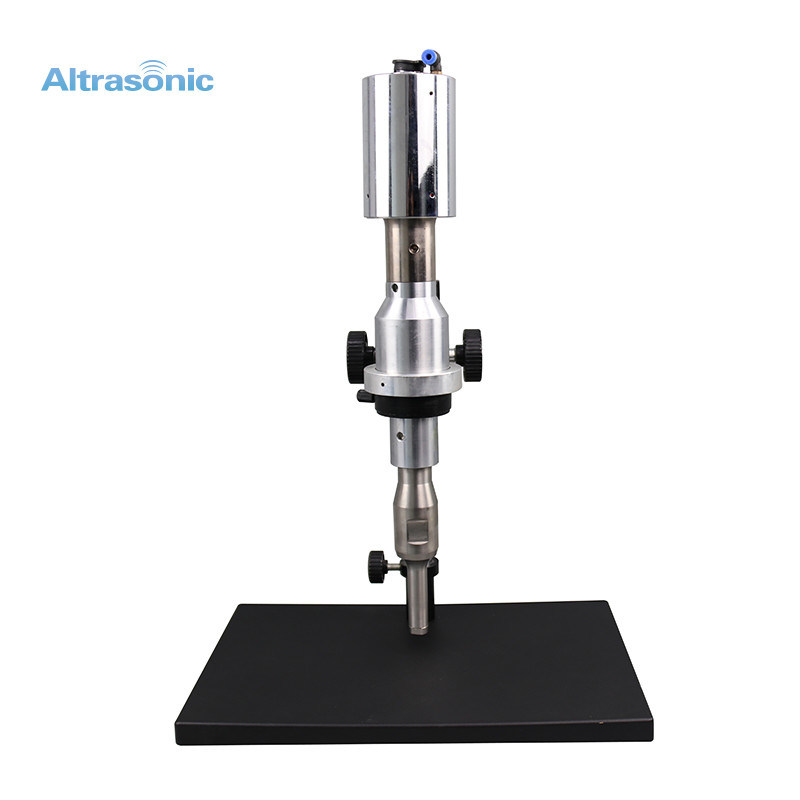

20kHz 500W Titanium Alloy Probe Ultrasonic Homogenizer Machine
Description:
The ultrasonic homogenizer uses the physical effects such as the cavitation of ultrasonic waves in the liquid to achieve the homogenization effect. The physical effect means that the ultrasonic energy can form effective agitation and flow in the liquid, destroy the structure of the medium, and smash the particles in the liquid, mainly due to the collision between the liquids, the microphase flow and the shock wave.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max capacity | ＞ 500ml/Min | ＞ 2 L/Min | ＞ 5L/Min | ＞ 15L/Min | ＞ 20L/Min | ＞ 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasonic homogenizer is a chemical reaction that uses physical technology to produce a series of extreme extreme conditions in the medium. This energy can not only stimulate or promote many chemical reactions and accelerate chemical reactions, but also change the direction of chemical reactions and produce some effects. Ultrasonic homogenizer can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, microbial treatment, degradation of toxic organic pollutants, biodegradation treatment, biological cell disruption, homogeneous agglomeration, powder materials The homogenization of the liquid material, the emulsification of the liquid material, such as the full stirring and homogenization of the ink material, so that the main components of the lithium battery can be uniformly homogenized into the liquid medium, and so on.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.
Pictures:
