Product Details:
|
| Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 500W | Weight: | 16Kg |
| Generator: | Digital Mode | Control: | Remote Control |
| Application: | Extraction, Dispersing, Emulsifying | Matetail Of Probe: | Titanium Alloy |
| Max Capacity: | More Than 500ml/Min | Intensity Of Sound: | More Than 10W/cm² |
| Origin: | China | ||
| Highlight: | 20k Ultrasonic Sonochemistry Machine,500 Watt Ultrasonic Sonochemistry Machine,Remote Controlled Ultrasonic Sonochemistry |
||

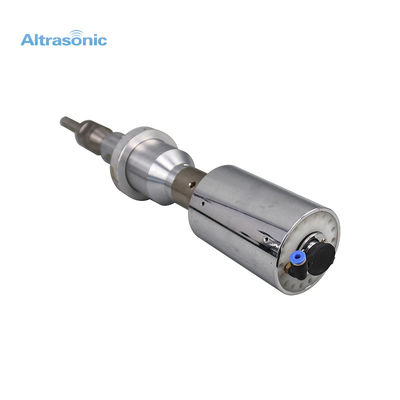

20k Ultrasonic Homogenizer Sonochemistry Machine Titanium Alloy Probe 500 Watt
Description:
Vigorous bubble collapse during ultrasonic cavitation results in extreme localized temperatures, heating/cooling rates, and pressures that initiate many sonochemical processes, including transesterification (for biodiesel production), pollutant degradation, and pasteurization, crude oil Desulfurization, etc. Ultrasonic processors with high frequency amplitudes can perform sonochemical treatments of any scale.
Specifications:
| Model | HSS20-500 | HSS20-1000-L | HSS20-1000 | HSS20-1500 | HSS20-2000 | HSS20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 1500W | 2000W | 3000 W |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Temperature | 150 ℃ | 150 ℃ | 150 ℃ | 300℃ | 300℃ | 300 ℃ |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max capacity | ＞ 500ml/Min | ＞ 2 L/Min | ＞ 5L/Min | ＞ 15L/Min | ＞ 20L/Min | ＞ 100 L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Applications:
Ultrasonic homogenizer can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation treatment, biological cell crushing, homogenization and agglomeration, powder Homogenization of materials, emulsification of liquid materials, such as sufficient stirring and homogenization of ink materials, so that the main components of lithium batteries can be uniformly homogeneous into the liquid medium, and so on.
Advantages:
1. Core parts with Titanium materials
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. With automatic alarm protection, easy to operate
5. Power adjustable from 1% to 99%
6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools
7. Provide consulting services and custom reactor designs
8. Custom sizes available for laboratory and high volume industrial applications.
Pictures:
