Product Details:
|
| Frequency: | 40khz | Blade: | 82MM |
|---|---|---|---|
| Material: | Titanium | Power: | 500w |
| Weight (KG): | 10KG | Application: | Rubber/Plastic/Food |
| Highlight: | 40 Khz ultrasonic cutting equipment,500w ultrasonic cutting equipment,82MM ultrasonic cutting equipment |
||
40 Khz 500w Ultrasonic Cutting Equipment With Foot Switch
Specificion:
| Frequency | 40Khz |
| Power | 500W 800W |
| Inupt | AC110-240V, 50/60Hz |
| Power Controller | stepping or continuous |
| Material of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
| Machine Wight | 4 kg-16KG |
| Accessories | foot switch, additional blade |
| Cooling Device | compressed air mouth can be installed. |
| Cable Length | 2M or customized |
| Foot Switch | available |
Description:
Ultrasonic cutting uses the energy of ultrasonic waves to heat and melt the material to be cut to achieve the purpose of cutting materials. It can easily cut resin, rubber, non-woven fabrics, films, various overlapping composite materials and food. The principle of the ultrasonic cutting machine is completely different from the traditional pressure cutting.
Applications:
1. Tire crown
2. Nylon
3. Steel ribbon plastic layer
4. Nylon cord
5. Lined
6. Sidewall
7. Apex
8. Triangular circle

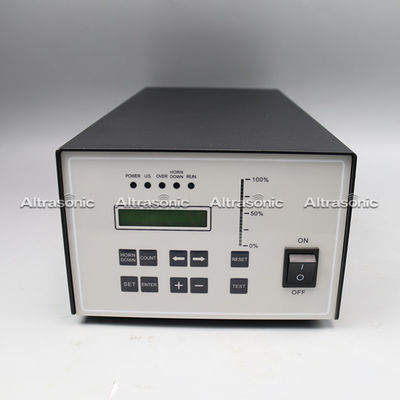

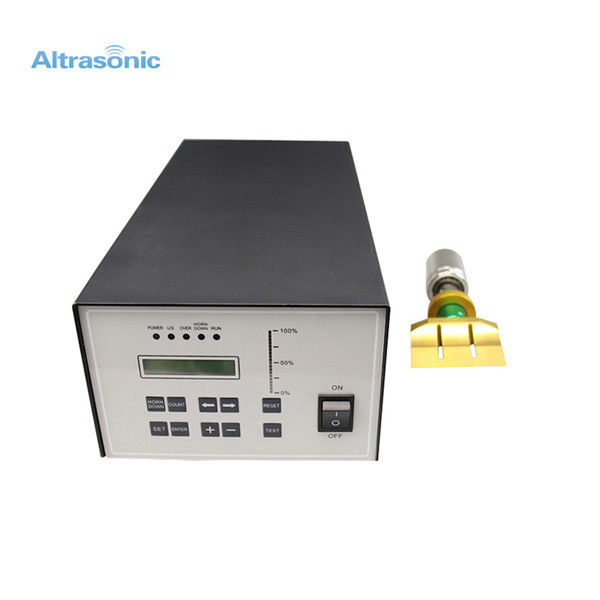

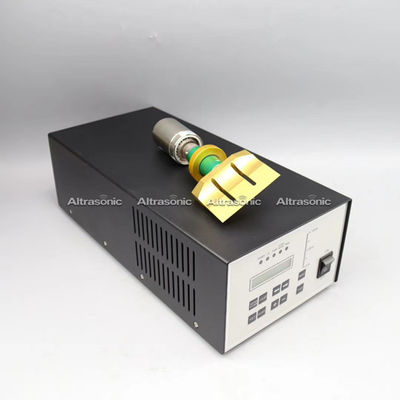

Detailed Images:
Transport and packaging:
Tag:ultrasonic cutting machine,ultrasonic rubber cutting
