Titanium 82MM 40Khz Ultrasonic Rubber Cutting Machine

Titanium 82MM 40Khz Ultrasonic Rubber Cutting Machine

Specificion:

Description:

The principle of ultrasonic rubber cutting knife totally different from the traditional sense of the cutting. By using ultrasonic energy, the material will be cut by locally heating, so as to achieve the purpose of cutting the rubber. Ultrasonic cutting does not require a sharp edge and don’t need a lot of pressure, so it will not cause damage of vulcanization.

The main components of a set of ultrasonic cutting systems include ultrasonic generators (drive power), ultrasonic transducers, horns, cutting knives (tool heads) and the output lines, control lines. Ultrasonic drive power will be converted into high-frequency high-voltage AC current, lost to the ultrasonic transducer. Ultrasonic transducer is actually equivalent to an energy conversion device, it can enter the input energy into mechanical energy, that is, ultrasonic waves. Its manifestation is the transducer in the longitudinal back and forth telescopic movement.

The frequency of the telescopic motion is equivalent to the frequency of the high frequency AC current supplied from the drive power supply. The effect of the horn is to fix the entire ultrasonic vibration system, and the other is to amplify the output amplitude of the transducer. The cutter (tool head) further amplifies the amplitude on one hand, focusing the ultrasound. On the other hand is the output of ultrasonic waves, the use of cutting knife similar to the edge, the ultrasonic energy concentrated input to the cutting material cutting parts.

The site in the huge ultrasonic energy under the effect of instant softening, melting, strength greatly reduced. At this point, as long as the application of a small cutting force, you can achieve the purpose of cutting materials.

Ultrasonic cutting advantage and features:

1. Cut the material quickly and precisely
2. Smooth and trace-less cutting edge
3. Powerful, effective reliable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.

Application:

1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For the automotive industry cutting

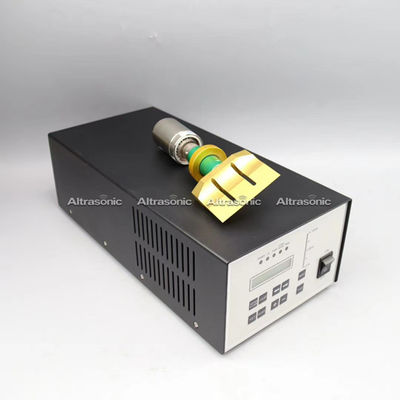

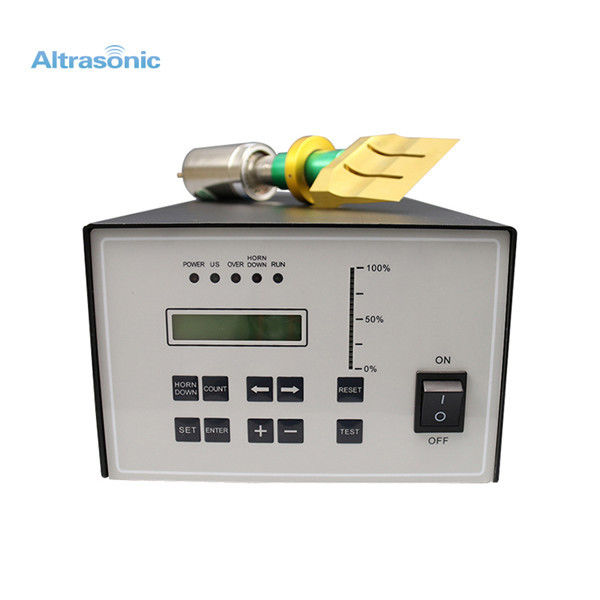

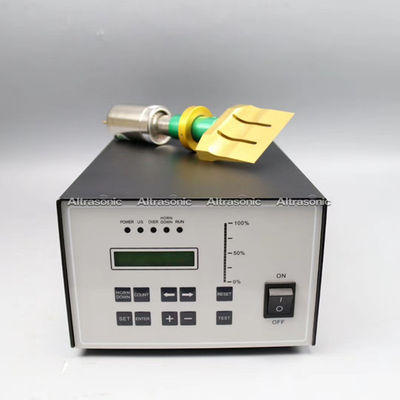

Detailed Image:

Tag:ultrasonic cutting machine,ultrasonic rubber cutting
