Product Details:
|
| Brand Name: | Altrasonic | Condition: | New |
|---|---|---|---|
| Usage: | Welding | Weight: | 25KG |
| Frequency: | 15KHz±0.5 KHz | Power: | 2600W |
| Voltage: | 220v,50-60hz | Horn Size: | 200*25mm |
| Highlight: | portable spot welding machine,portable spot welder |
||
15k 2600W Sonotrode and ultrasonic spare parts for Kn-95 automatic mask line
Description:
High-frequency vibration transmits the ultrasonic energy to the welding area through the upper weldment, and the upper and lower weldments in this area are rubbed to generate local high temperature. After the ultrasonic action, the pressure lasts for a few seconds to make it set and form a strong molecular chain to achieve welding.
Feature:
1. The ultrasound system is divided into three parts, an ultrasound generator, an ultrasound transducer and an ultrasound mold. These three parts are a complete ultrasound system. The 15K tool head size is 200 * 25mm, which is generally suitable for N95 mask machine
2. The machine has a low failure rate, wearing parts, durable, easy installation and debugging, and simple maintenance.
Specifications:
| Product Name | 15k ultrasonic welding system |
| Frequency | 15k |
| Power | 2600w |
| Horn size | 200*25mm |
| Weight | 28kg |
| Usage | Ultrasonic welding |
| Single package size | 45*42*26CM |
Application:
Spot welding, plastic welding, non-woven fabric welding, mask ear welding, surgical gown welding, etc.
Competitive Advantage:
Small noise.
Aesthetic creation.
Low cost and high efficiency .
Efficient and environmentally friendly.
Easy to automate production.

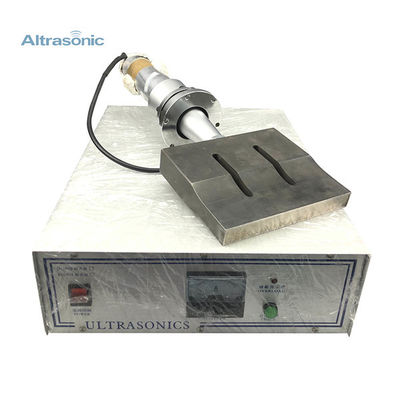

Detailed Image:
