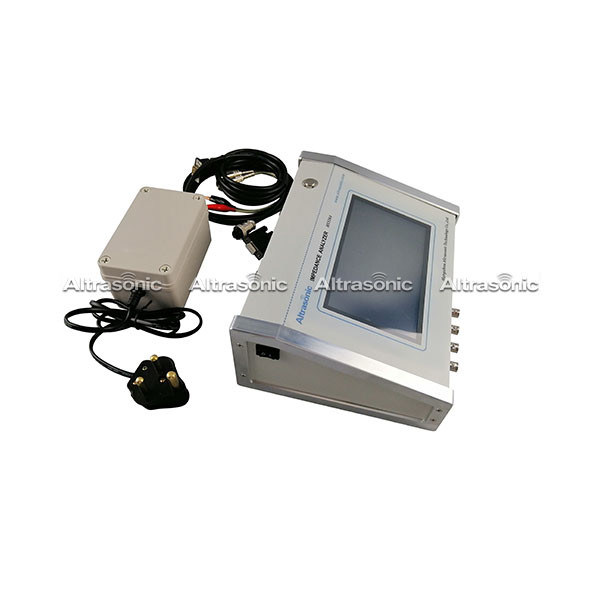

Product Details:
|
| Item No.: | HS-520A | Frequency Range: | 1KHz～500KHz/1Mhz/3Mhz/5Mh |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Impedance Range: | 0.1Ω～1MΩ |
| Dimensions: | 240mm*190mm*100mm | LCD Screen: | 8-inch Screen |
| Highlight: | measurement instruments,analyzer instrument |
||
Specification:
|
Specification Performance |
HS520A |
| Product feature | Portable, 8inch screen, Full touch screen |
| Dimension | L24cm,W19cm,H10cm |
| Frequency range | 1KHz~500MHz/1Mhz/3Mhz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | < 0.5% |
| Measurement Speed | 5s/one pass(600scan point) Adjustable |
| Frequency Accuracy | ±10ppm |
| Phase Resolution | 0.15 degree |
| Environment Temperature | 10～40degree centigrade |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any |
| Power Supply | AC100V～AC250V,50～60Hz, 30W |
| Application | Ultrasonic device |
Description:
In the production of ultrasonic components, we will observe the current of the device to detect the resonance and anti-resonance frequencies and their respective electrical impedances. Because anti-resonance is the frequency at which the current meets the maximum impedance, resonance is the frequency of the minimum impedance. Altrasonic's impedance analyzer can detect the minimum and maximum current points while scanning the drive frequency, thereby detecting resonance and anti-resonance frequencies. The detection instrument comes with an ARM processor, which can be impedance. The operation is simple and easy to carry.
Application:
1. Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)
2. Ultrasonic welder manufacturers (tuning process, quality control and horn development)
3. Ultrasonic cleaner manufacturers (tuning process and quality control)
4. Medical equipment manufacturers (quality control and receipt inspection)
5. Healthcare industry (maintenance, horn manufacturing and receipt inspection)
6. Mattress manufacturers (maintenance and receipt inspection)
7. Wire dies manufacturers (maintenance and horn manufacturing)
8. White line manufacturers (receipt inspection)
9. Footwear manufacturers (maintenance and horn manufacturing)
10. Underwear manufacturers (maintenance and horn manufacturing)
11. Fish finder manufacturers (quality control and underwater transducers development)
12. Eyeglass lenses manufacturers (maintenance of cleaning systems)
13. Fishing lures manufacturers (maintenance and horn manufacturing)
14. Water and energy meters manufacturers (maintenance and horn manufacturing)
15. Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)
16. Ultrasonic additive industry (maintenance, horn manufacturing and development)
17. Research groups (piezoelectric and ultrasonic devices development
18. R&D departments (product development)
19. Sensors manufacturers (maintenance, quality control and receipt inspection)
Competitive Advantages:
Test equipment is the most important part of product quality checks, so the product of “credibility” is essential. Our products have four major advantages:
1.Tsinghua University and the Chinese Academy of Sciences Institute of Acoustics jointly developed technology.
2. Since 2001, our HS60A/70A series of products to the market has been 15 years , thousands of customers use in the industry, has become a matter of fact the ultrasound industry measurement standard.
3.Over the past 15 years, more than 200 colleges and universities have been using our instruments, because they often have more than 20,000 imported Agilent instruments, 4294A. Our instruments have been tested many times with imported Agilent instruments. It turns out that the results of our instruments are completely trustworthy.
4. Our instruments have been used by many German and US ultrasonic testing companies as test instruments. The instrument is the key to quality control.
