Product Details:
|
| Frequency: | 35khz | Application: | Ultrasonic Sealing And Welding |
|---|---|---|---|
| Components: | Ultrasonic Transducer, Generator And Wheel | Condition: | New |
| Warranty: | 1 Year | Brand Name: | Altrasonic |
| Highlight: | ultrasonic sealer,ultrasonic sewing machine |
||

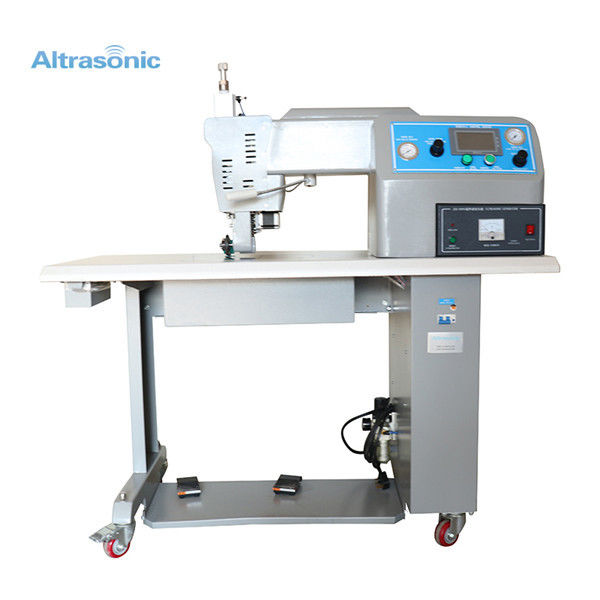

Reliable 35khz Ultrasonic Sealing and Cutting Machine
Description:
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
|
1. Air filter assembly
|
2. Main power switch
|
|
3. Main air leakage switch
|
4. Ultrasonic current
|
|
5. Ultrasonic running button
|
6. Ultrasonic power switch
|
|
7. Ultrasonic alarm
|
8. Power indicator
|
|
9. Pressure controller of press wheel
|

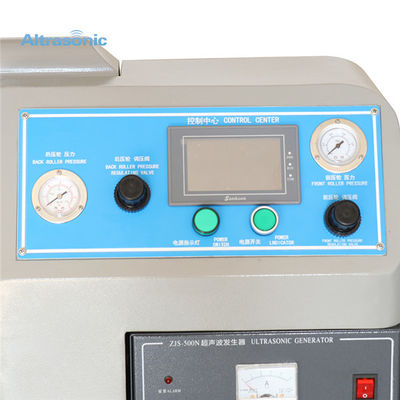

10. Control center
|
|
11. Pressure indicator of press wheel
|
12. Upper press wheel
|
|
13. Ultrasonic converter
|
14. Left and right pedals
|
|
15. Upper cylinder column
|
16 Working lamp |
Specifications:
| Model | HS-WS35 |
| Frequency | 35 KHz |
| Power | 800 W |
| Rotary Welding Horns Width | 12 mm |
| Power Adjust Method | File or Continuous |
| The Horns Surface Hardness | More than HRC56 |
| Real-time Display | Working Frequency and Working Current |
| Synchronizing Wheel Specifications | 46XL Trapezoidal Tooth,Width16mm |
| Synchronizing Belt Matched | The Length is not more than730mm,the Width 12mm |
| Allowable Rotation Speed | 100 r/min. |
| Install Bolt | M8, 4 pcs |
Features:
1. Ultrasonic lace machine welding wheel welding head is made of special alloy steel material, and after special heat treatment process, it has the characteristics of wear resistance and long service life.
2. The lace machine does not require preheating for continuous processing, high speed, mass production, and corner rotation. It does not emit smoke or sparks during processing, and does not harm the edges of the cloth.
3. Ultrasonic lace machine stitching machine is easy to operate and easy to understand. Ordinary workers can operate the machine.
Main advantages:
· More stability.
· Easy operation.
· The wheels and most of parts are made from titanium materials, long service life.
· Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.
· Easily integrated on customers' current processing line.

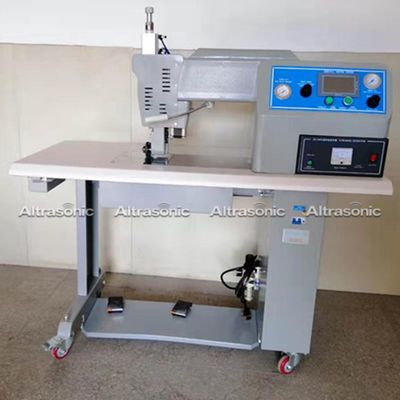

Detailed image:
