Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Frequency: | 20Khz |
|---|---|---|---|
| Ceramic Diameter: | 50MM | Capacitance: | 11000 Pf |
| Power: | 1000 Watt - 3000 Watt | Application: | Welding Machine |
| Amplitude: | 20Um | Ceramic Disc: | 4 Pcs |
| Material Of Booster: | Titanium Material | Protective Housing: | Aluminum And Stainless Steel Optional |
| Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
||

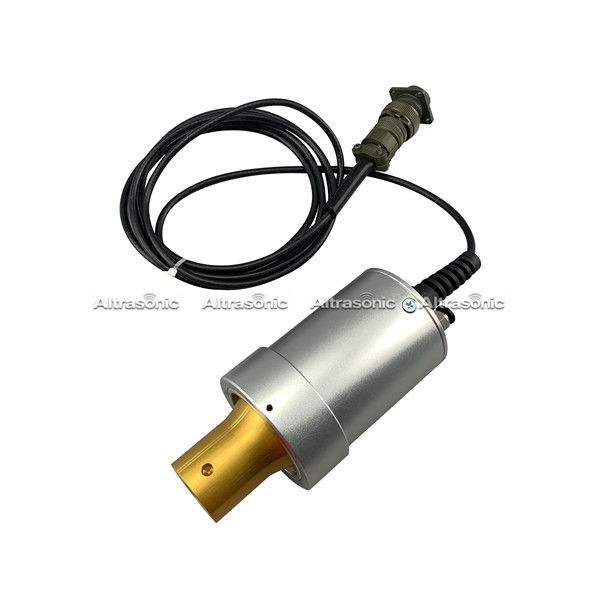

20Khz 1000-3000W Ultrasonic transducer for replacement Dukuan 41S30
Description:
Ultrasonic transducer: A device that converts high-frequency electrical energy into mechanical energy, generally with magnetostrictive and piezoelectric ceramics. The power is output to the ultrasonic generator, and then to the ultrasonic transducer, and ultrasonic waves are generally generated by the ultrasonic derivation and receiving device.
Specifications:
| Model | HSD41S30 |
| Frequency | 20 khz |
| Output power | 1000 watt - 3000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 11000 pf |
| Amplitude | 20 um |
| Application |
welding machine |
Competitive Advantage of Altrasonic:
* good heat resistance
* large range of working temperature
* low resonance impedance and heat productivity
* good construction
* fastened by bolt
* easy for assembling
Applications:
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
Service
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
Product features:
All-new made in China
Meets or exceeds all Branson specifications
Directly replaces Branson803
Certified materials
Made in ISO-9002 registered facility
Warranty:
We offer the same warranty as the OEM, namely, one year of one-time replacement.
Simply ship the broken unit back to arrive within one year of original shipment, and it will be
replaced (one time).
Tag: ultrasonic piezoelectric transducer,high power ultrasonic transducer
