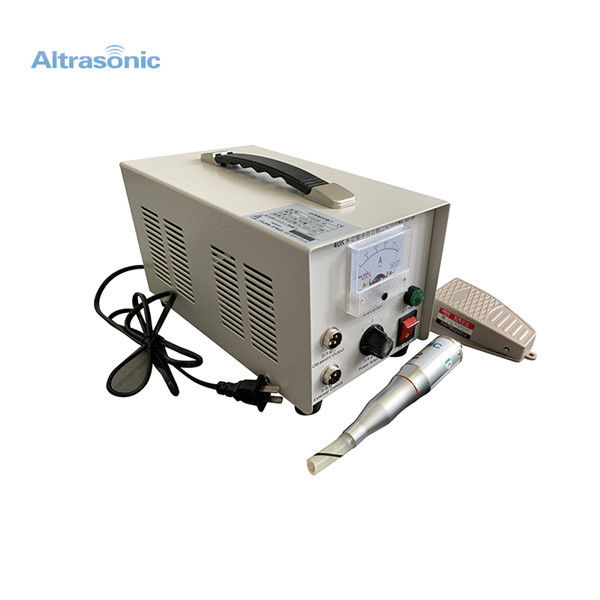

High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material

High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material
High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material

Large Image :  High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C40
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now

High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material

Description
Frequency: 40Khz Power: 100W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting Generator: Analog
Size Of Generator: 155 X 265 X 170mm Voltage: 220V / 110V
Weight: 6kg
Highlight:

ultrasonic cutting knife

,

ultrasonic cutting equipment



High Frequency Small Size of Ultrasonic Cutting Machine for Film/Rubber Material



Specification:

Model
HS-C40
Frequency
40KHZ
Output Power
100W

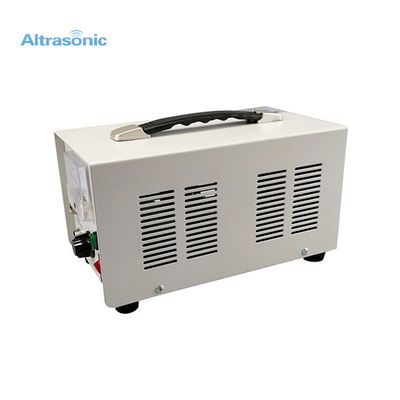

Generator
Analog generator, 155 x 265 x 170mm

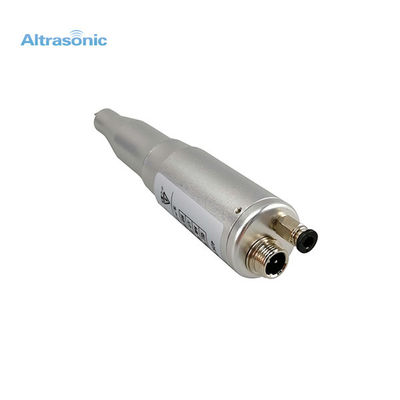

Handle
Φ32×170
Size of cutter
Blade replaceable
Length of cable
Outer skin
Aluminum
Weight
8KG
Voltage
220V / 110V
Accessory
Foot switch1pc；Cut blade 25pcs；1.5mm special hex wrench 1pc；
Screw M3×4L 2pcs
Material of cutter
titanium alloy, stainless steel


Description:

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.


Typical materials processed

  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials


The difference between traditional cutting and ultrasonic cutting

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge. The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.


Competitive Advantages

  • No special installation equipment
  • Smooth cutting of difficult-to-cut materials
  • Environment-friendly (No noise, no smoke, no air contamination)
  • Small hand-held size(can be attached to automotive machinery arms)
  • Cutting all kinds of ordinary tool to cut products, solve production problems
  • Installation, easy to use, almost does not change the original cutting process
  • Can use air-cooling, water-cooling design, adapt to various working conditions and environment
  • Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
  • The use of high power ultrasonic transducer vibrating element, ensure the long time stable working
  • The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
  • Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool
  • Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special


Product display:


High Frequency Small Ultrasonic Cutting Machine for Film / Rubber Material 0
